LZF倉壁振動器用途
振動電機式倉壁振動器（亦稱防閉塞裝置）主要用于防止和消除料倉、料罐或料斗內物料的起拱、管狀通道、粘倉等閉塞現象的專用設備，以保證流料順利下泄，提高物料輸送的自動化程度?？蓮V泛應用于電力、建材、煤炭、礦山、化工、冶金、鑄造、輕工、食品、制藥、糧食、交通等行業。
梅廣州 13072638986
Applications
Silo wall vibration motor vibrator (also call anti block device) is mainly used to prevent and eliminate silos, container, or materials in the bulging, tubular channel, sticky warehouse occlusion phenomenon such as special equipment, to ensure the smooth drainage of material flow, enhance the automation of material transfer.Can be widely used in electric power, building materials, coal, mining, chemical, metallurgy, casting, light industry, food, pharmaceutical, food, transportation and other industries.

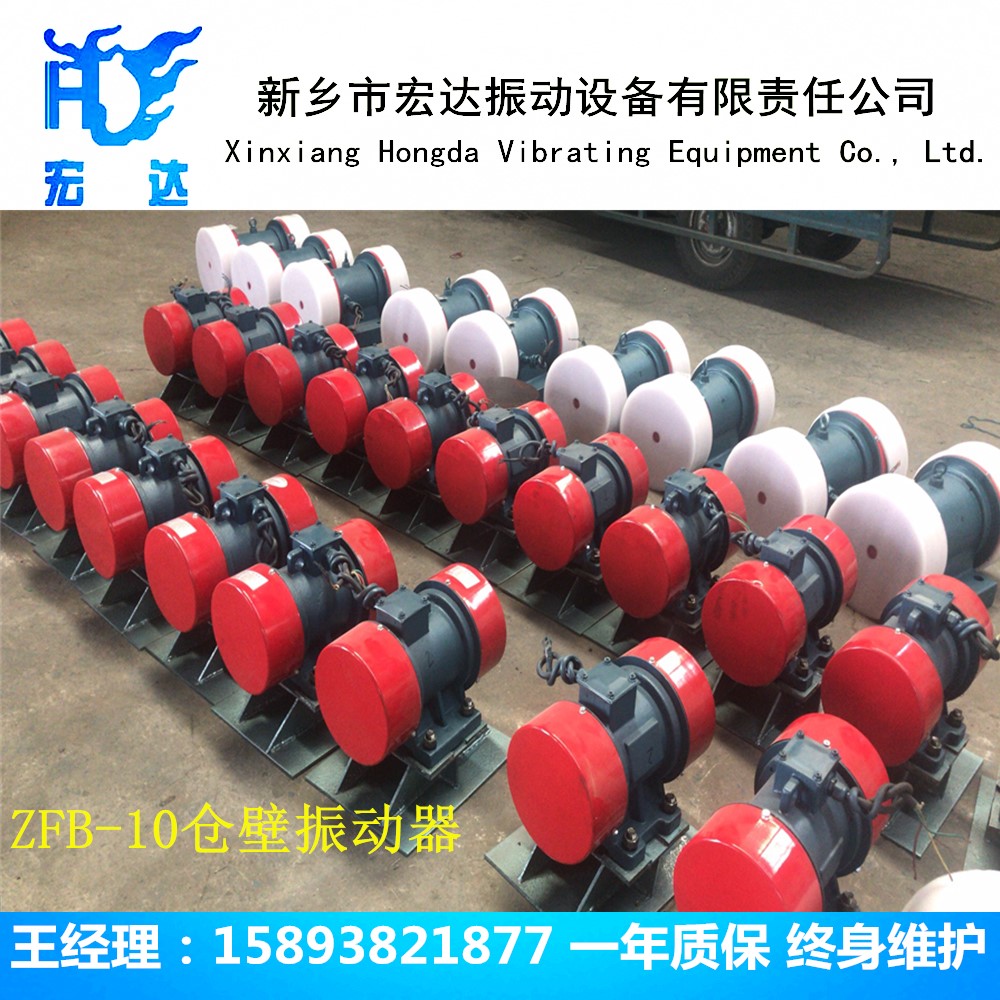

LZF倉壁振動器結構
倉壁振動器是應用振動電機的一個典型實例。倉壁振動器以振動電機為激振源，將底座與振動電機采用高強度螺栓堅固連接。
宏達振動梅廣州 15893821877 0373-2632855
Structure
The warehouse wall vibrator is a typical example of application of vibration motor.Silo wall vibrator use vibrating motor as vibration source, the base and vibration motor adopts high strength bolt connection.
宏達梅廣州 0373-2632855 15893821877
LZF倉壁振動器特點
1、防閉塞能力強，功耗低，效果好；
2、防閉塞能力可調，適用范圍廣；
3、噪音低，使用壽命長；安裝和維修方便。
Characteristic
1, anti block ability, low power consumption, good effect.
2, anti block ability is adjustable, applicable range is extensive;
3, low noise, long service life.Installation and easy maintenance.
倉壁振動器使用和維護
1、 防閉塞裝置一般焊接在料倉下部起至倉高1/3--1/4處。
2、 若非鋼制料倉或有加強筋不易振動的料倉，應在倉內鋪設振動板，將防閉塞裝置焊接在振動板上，并一起堅固在料倉上。
3、每月對電機軸承進行保養，補充潤滑脂；定期清除機殼外積塵，改善散熱條件，但不能用水沖洗。
4、 定期檢查絕緣電阻，堅固地腳螺栓，及時消除隱患。
Use and maintenance
1, anti block general welding up to warehouse at the bottom of the bin high 1/3, 1/4.
2, It were not for the steel silo bin or reinforcement to vibration, vibration plate shall be laid in the warehouse, will prevent occlusion device on the vibration plate welding, and strong in the bin.
3, monthly maintenance was carried out on the motor bearing, adding grease;Regularly to remove dust outside casing, improve heat dissipation condition, but it can't wash with water.
4, regular check insulation resistance, strong anchor bolt, in a timely manner to eliminate hidden dangers.
LZF倉壁振動器技術參數
Parameters
型號 | 適用料倉槽壁厚（mm） | 錐部倉容（T） | 配用振動電機 | 激振力（KN） | 功率（KW） | 重量（kg） |
LZF-3 | 1.6-3.2 | 0.6 | 0.7-2 | 0.7 | 0.075 | 20 |
LZF-4 | 3.2-4.5 | 1 | 1.5-2 | 1.5 | 0.15 | 25 |
LZF-5 | 4.6-6 | 3 | 2.5-2 | 2.5 | 0.25 | 38 |
LZF-6 | 6-8 | 10 | 5-2 | 5 | 0.4 | 42 |
LZF-10 | 8-10 | 20 | 10-2 | 10 | 0.75 | 58 |
LZF-15 | 10-12 | 50 | 15-2 | 15 | 1.1 | 65 |
LZF-20 | 12-15 | 80 | 20-2 | 20 | 1.5 | 98 |
LZF-25 | 15-25 | 150 | 30-2 | 30 | 2.2 | 147 |
新鄉市宏達振動設備有限責任公司
Xinxiang hongda vibration equipment co., LTD
